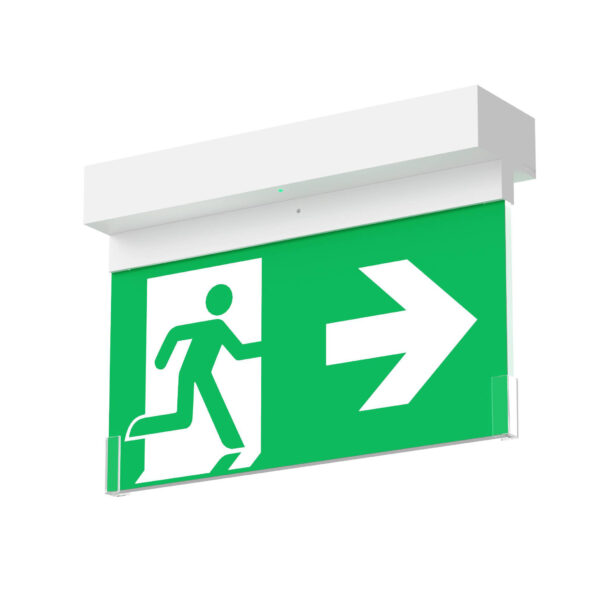

ENOV LED Exit lights (EVE53MT) – Indoor Application

Immediately available

ENOV LED Exit lights (EVE53MT) – Indoor Application

Immediately available

Brand: Enov

Application: Indoor Application

Power Supply: 210-250 V AC 50-60 Hz

Active power: 2.2 W

Protection Type: IP40

Visibility: <20m

Lumen Output: 500lm

EVE53MT LED Exit Light – Indoor, 20m viewing distance, 3-hour battery backup, IP20, IK05, DEKRA certified, supplied with exit legends & pictograms.

Product information "ENOV LED Exit lights (EVE53MT) – Indoor Application"

The EVE53AT is a versatile LED Exit Light designed for indoor applications with wall and ceiling mounting options. It features a 500-lumen output, a 20m viewing distance, and a 3-hour LiFePO4 battery backup for reliable emergency lighting. The unit operates in maintained and non-maintained modes and includes automatic test functionality for safety compliance. Constructed from polycarbonate housing, it is IP40-rated, ensuring durability in indoor environments.

Key features:
500lm High Brightness Output – Ensures excellent illumination for escape routes.
3.2V 600mAh LiFePO4 Battery – Provides a 3-hour backup in emergency mode.
20m Viewing Distance – Offers clear visibility for safety compliance.
Maintained & Non-Maintained Operation – Supports both continuous and emergency-only lighting.
Wall & Ceiling Mountable – Suitable for various installation configurations.
Recessed Mounting Option – Compatible with EV56RK recessing kit.
Open Area & Corridor Lens Options – Adaptable for different environments.
IP40 Protection – Designed for indoor use.
Energy-Efficient LED50,000-hour lifespan reduces maintenance costs.
Automatic Test Function – Ensures consistent performance and compliance.
DEKRA Certified – Meets international safety standards.







Technical Data

General Specifications

  • Model: EVE53AT
  • Application: Indoor Use (Wall & Ceiling Mounted)
  • Light Source: LED
  • Lumen Output: 500lm
  • Viewing Distance: 20m
  • Battery Type: LiFePO4 3.2V 600mAh
  • Battery Backup: 3 hours
  • Light Emission: Open Area / Corridor Lens

Electrical Specifications

  • Active Power: 2.2W
  • Power Supply: 220-240V AC, 50/60Hz
  • Dimming Mode: Non-Dimmable
  • Operating Mode: Maintained / Non-Maintained
  • Test Function: Auto Test

Mechanical & Environmental Specifications

  • Color: RAL 9003 (White)
  • Material: Polycarbonate (Durable & Lightweight)
  • Ingress Protection: IP40 (Indoor Use Only)
  • Installation Type: Ceiling / Wall Mounted
  • Recessing Kit Compatibility: EV56RK
  • Operating Temperature: 0°C to 45°C
  • LED Lifetime: 50,000 hours

Warranty

  • Housing & PCB: 5 Years
  • Battery: 1 Year

Application

Commercial Buildings – Offices, malls, hotels, and conference centers.
Educational Institutions – Schools, universities, and libraries.
Healthcare Facilities – Hospitals, clinics, and laboratories.
Public & Government Buildings – Airports, train stations, auditoriums.
Residential Complexes – Apartments, condominiums, and high-rise buildings.
Emergency Exit Routes – Stairwells, hallways, and designated escape paths.
Indoor Parking Areas – Ensuring clear exit guidance.

Documents

Datasheet
LED Exit lights (EVE53MT) – Indoor Application
