ENOV LED Emergency & Exit lights (EVE23MT) – Indoor & outdoor Application

Immediately available

ENOV LED Emergency & Exit lights (EVE23MT) – Indoor & outdoor Application

Immediately available

Brand: Enov

Application: Outdoor application

Power Supply: 210-250 V AC 50-60 Hz

Protection Type: IP 66

Visibility: 25m

Luminance: >150 cd/m²

EVE23MT LED Emergency/Exit LightIP66, IK10, 300lm output, 3-hour battery backup, DEKRA certified, supplied with exit legends & pictograms, ensuring reliable safety compliance.

Product information "ENOV LED Emergency & Exit lights (EVE23MT) – Indoor & outdoor Application"

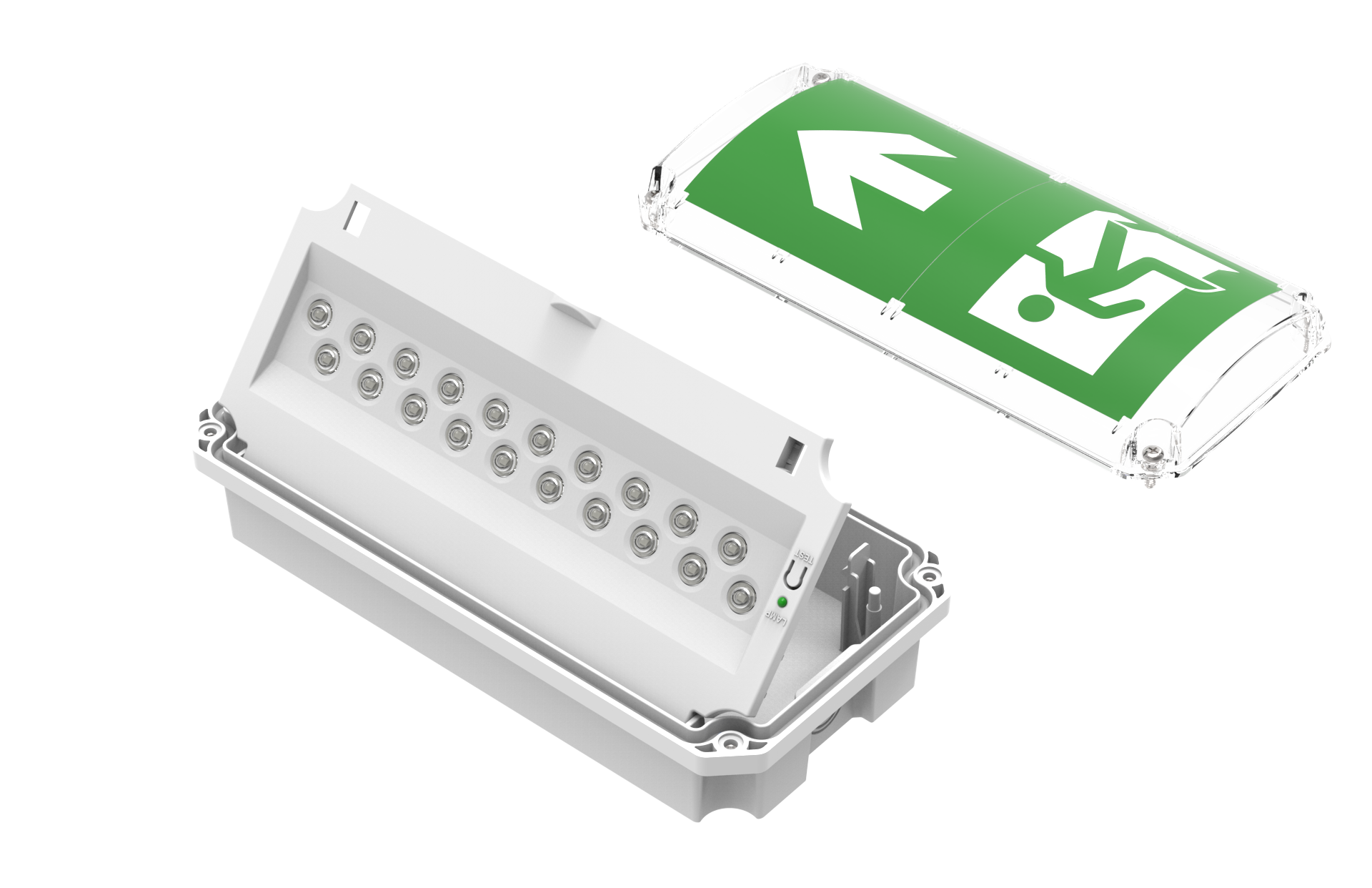

The EVE23MT is a high-performance LED Emergency/Exit Light designed for both indoor and outdoor applications. With an IP66-rated weatherproof enclosure and a robust IK10 construction, it ensures durability in harsh environments. Featuring a 300-lumen output during emergency operation, a 3-hour LiFePO4 battery backup, and a 25m viewing distance, this unit is ideal for safety and emergency exits. The DEKRA-certified light comes with exit legends in English/Arabic, including directional pictograms for clear visibility.

Key features:
300lm Emergency Output – Ensures high visibility in emergency situations.
3.2V 3300mAh LiFePO4 Battery – Provides a reliable 3-hour backup during power failures.
IP66 Weatherproof Rating – Suitable for both indoor and outdoor applications.
IK10 Impact Resistance – Robust construction for high durability.
25m Viewing Distance – Ensures clear visibility for exit guidance.
High Luminance >150 cd/m² – Provides excellent contrast for easy readability.
Supplied with Exit Legends – Includes English/Arabic text & pictograms (Running Man with Right,







Technical Data

General Specifications

  • Model: EVE23MT
  • Application: Indoor/Outdoor (Weatherproof)
  • Light Source: LED
  • Lumen Output: 300lm (Emergency Mode)
  • Viewing Distance: 25m
  • Luminance: >150 cd/m²
  • Light Emission: Open Area
  • Battery Type: LiFePO4 3.2V 3300mAh
  • Battery Backup: 3 hours

Electrical Specifications

  • Active Power: 4.5W
  • Power Supply: 210-250V AC, 50/60 Hz
  • DC Power Supply: 186-254V DC
  • Insulation Class: Class II

Mechanical & Environmental Specifications

  • Color Options: White / Black
  • Material: ABS (Durable and Lightweight)
  • Ingress Protection: IP66 (Dust & Water Resistant)
  • Impact Resistance: IK10 (High Durability)
  • Operating Temperature: 10°C to 40°C
  • LED Lifetime: 50,000 hours

Compliance & Certifications

  • Testing Options: Manual Test / Auto Test / DALI
  • Certifications: DEKRA Certified
  • Standards Compliance:
    • IEC 60598-2-22:2014+A1
    • IEC 60598-1:2014+A1
    • EN IEC 55015:2019+A11
    • EN IEC 61000-3-2:2019+A1
    • EN 61000-3-3:2013+A1
    • EN 61547:2009

Warranty

  • Housing & PCB: 5 Years
  • Battery: 1 Year

Application

The EVE23MT LED Exit Light is suitable for:
Commercial Buildings – Offices, shopping malls, hotels, and conference centers.
Industrial Facilities – Factories, warehouses, and production plants.
Public Spaces – Airports, train stations, hospitals, and educational institutions.
Parking Areas – Underground and multi-story parking garages.
High-Risk Zones – Fire exits, escape routes, stairwells, and emergency assembly points.
Outdoor Installations – Weatherproof design makes it ideal for outdoor corridors, pathways, and building exteriors.

Documents

Datasheet
LED Exit lights (EVE23MT) – Outdoor Application
