EP080F+MP – Belimo EPIV (2-way PI-CCV), DN 80, Flanged, AC/DC 24 V, MP-Bus

Name: EP080F+MP – Belimo EPIV (2-way PI-CCV), DN 80, Flanged, AC/DC 24 V, MP-Bus
SKU: 15980
Availability: InStock

Immediately available

EP080F+MP – Belimo EPIV (2-way PI-CCV), DN 80, Flanged, AC/DC 24 V, MP-Bus

Immediately available

Brand: Belimo

Valve type: PICV

Port: 2-port

PN class: PN16

Connection: Flange

Nominal Size: DN80

Belimo EPIV electronic PICV for HVAC coils with pressure-independent flow control and flow feedback to simplify commissioning and improve coil performance.

Product information "EP080F+MP – Belimo EPIV (2-way PI-CCV), DN 80, Flanged, AC/DC 24 V, MP-Bus"

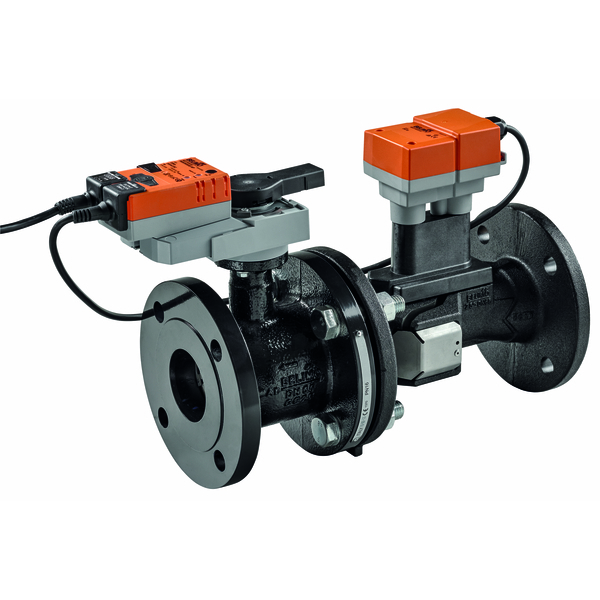

Belimo EP080F+MP is an electronic pressure independent control valve (EPIV) for HVAC water systems. It combines a 2-way PI-CCV with integrated actuator for stable flow control. DN 80 flanged (PN 16), V’nom 11 l/s, suitable for water/glycol, temperature range -10…120°C, with control via MP-Bus and 2…10 V.

Key features

2-way electronic pressure independent valve (EPIV)
DN 80, flanged, PN 16
V’nom 11 l/s
Supply: AC/DC 24 V
Control: MP-Bus + DC 2…10 V
Media: water / glycol mixtures (HVAC)
Temperature: -10…120°C (14…248°F)
Pressure rating: ps 1600 kPa

Technical Specifications

Valve / assembly

Product type: Electr. 2-way PI-CCV (EPIV)
Nominal size: DN 80
Connection: Flange
Pressure class: PN 16
Max. operating pressure (ps): 1600 kPa
Nominal flow (V’nom): 11 l/s
Fluid temperature: -10…120°C (14…248°F)
Suitable fluid: HVAC water / water with glycol

Actuator / control

Supply voltage: AC/DC 24 V
Communication/control: MP-Bus
Analog control: DC 2…10 V

Applications

Ideal for chilled water and hot water coils, AHUs, FCUs, and district cooling interface control where stable flow and accurate energy control are required.
