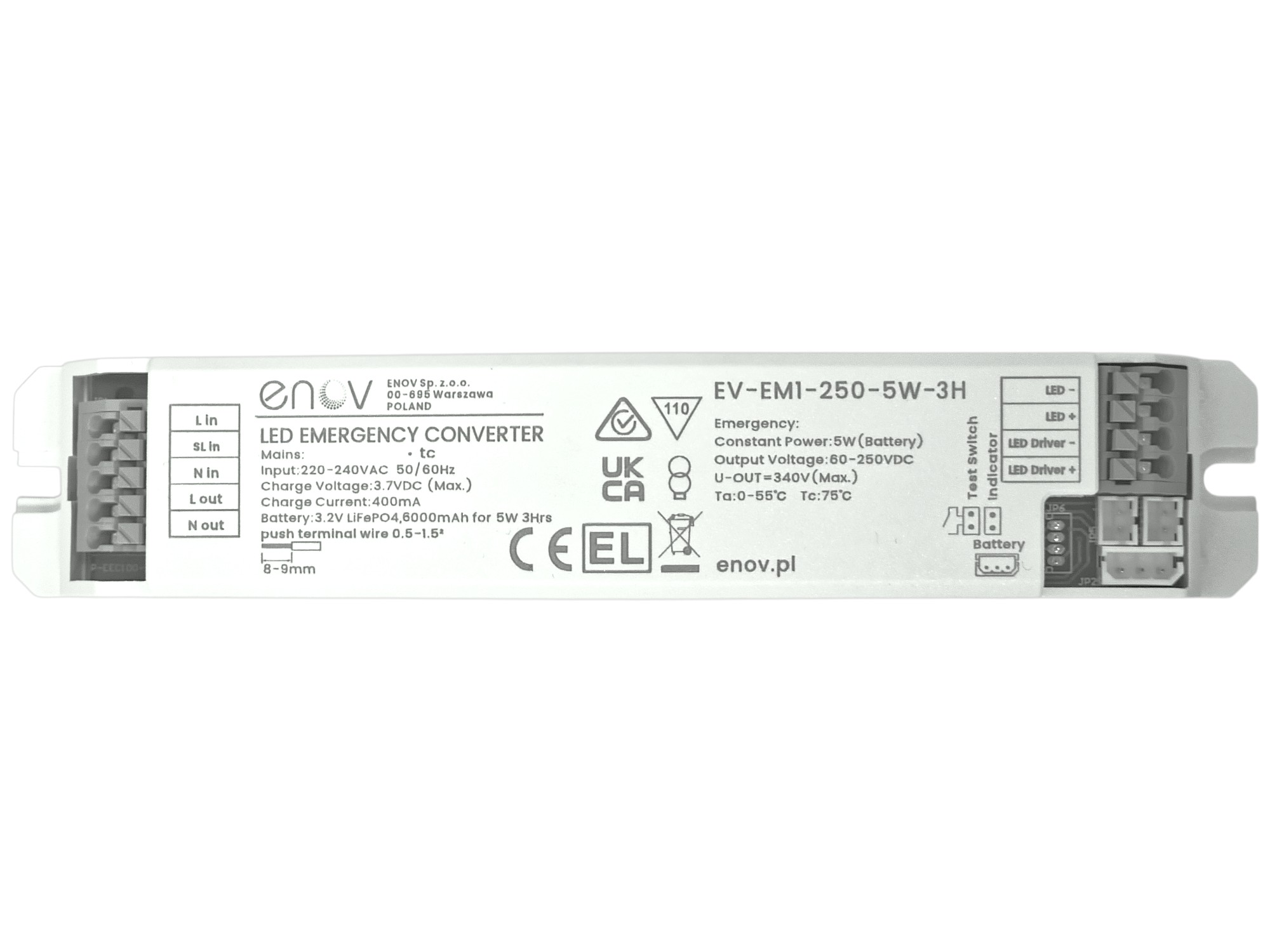

ENOV Emergency Battery Kit for LED Modules – EV-EM1-250 Series
Immediately available
ENOV Emergency Battery Kit for LED Modules – EV-EM1-250 Series
Immediately available
Brand: Enov
Input Voltage: 220-240V AC
Output Voltage: 60–250VDC
Type of Battery: LiFePO4
Emergency Power: Power Options: 2.5W, 5W, 10W (constant power)
Emergency battery kit for high-voltage LED modules (60–250VDC), available in 2.5W, 5W, and 10W versions with 3-hour backup. TÜV certified, long-life LiFePO4 battery, suitable for both dimmable and non-dimmable LED drivers.
Product information "ENOV Emergency Battery Kit for LED Modules – EV-EM1-250 Series"
The ENOV EV-EM1-250 Series Emergency Battery Kit offers reliable backup power for high-voltage LED modules. Designed for LED modules with a forward voltage of 60–250VDC, this series ensures up to 3 hours of emergency illumination with constant power outputs of 2.5W, 5W, or 10W. Compatible with both dimmable and non-dimmable LED drivers, it features advanced LiFePO4 batteries with a service life exceeding four years. TÜV Rheinland certified, this emergency kit guarantees safety and high performance, making it ideal for commercial, industrial, and public lighting applications requiring dependable emergency lighting. Its compact design allows for flexible installation, either inside the fixture or remotely.
Technical Data
Input
Parameter
Specification
Voltage Range
220–240V AC
Frequency
50–60 Hz
Power Factor
>0.55
Input Power
4.5W
AC Current
30mA (240V AC)
Inrush Current
1.5A (max, 240V AC)
Output
Parameter
Specification
DC Voltage
60–250V DC
Power Options
2.5W, 5W, 10W (constant power)
Emergency Duration
3 hours
Battery
Power
Type
Battery Specification
Dimensions (mm)
2.5W
LiFePO4
3.2V 3Ah
158 × 22 × 21
5W
LiFePO4
3.2V 6Ah
170 × 30 × 29
10W
LiFePO4
6.4V 6Ah
183 × 36 × 35
Charge Current: 300–400mA (model dependent)
Charge Time: 16–24 hours (see model details)
Service Life: Over 4 years
Protection & Environment
Parameter
Specification
IP Rating
IP20
Mains Surge
1kV
Max Casing Temperature
75°C
Ambient Temperature
0–55°C (Operation: -25°C to 50°C)
Humidity
10–95% RH, non-condensing
Storage Temperature
-40°C to 80°C
Compatibility
For LED modules with forward voltage 60–250VDC
Compatible with dimmable and non-dimmable LED drivers
Inverter Dimensions
Parameter
Specification
Inverter
161.17 × 30.37 × 21 mm
Certifications
TÜV Rheinland Certified
EN 61347-2-7:2012+A1
EN 61347-1:2015+A1
EN 62493:2015
Warranty
1 year on inverter and battery
Others
Parameter
Specification
MTBF
50,000 hours (at 25°C ambient)
Documents
Datasheet
ENOV EV-EM1-250 Series Emergency Battery Kit for LED modules
