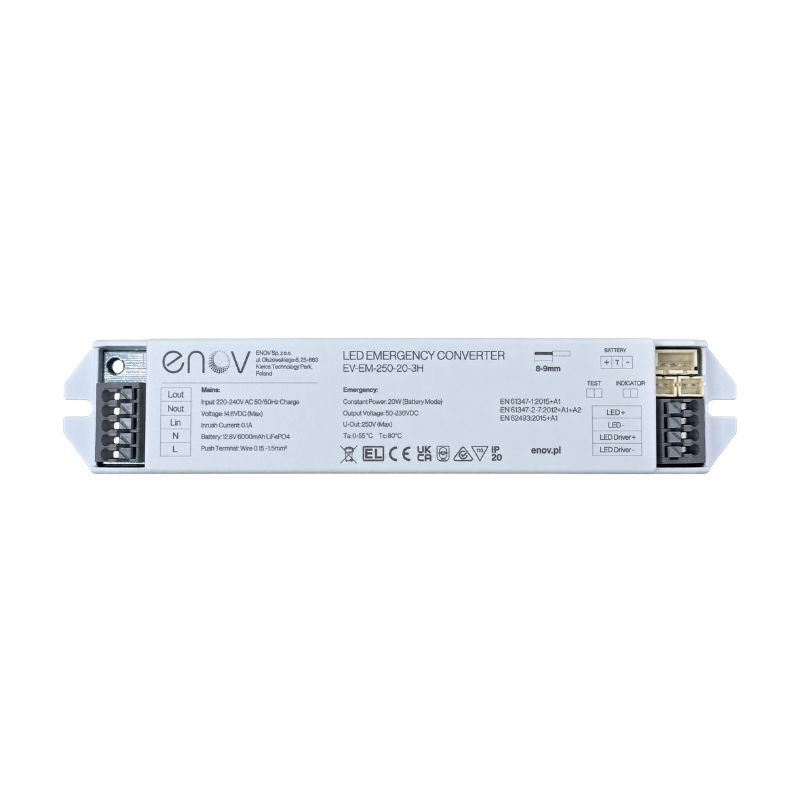

ENOV Emergency Battery Kit for LED Modules – EV-EM-250 Series

Immediately available

ENOV Emergency Battery Kit for LED Modules – EV-EM-250 Series

Immediately available

Brand: Enov

Input Voltage: 220-240V AC

Output Voltage: 50–230V DC

Type of Battery: LiFePO4

Emergency Power: Power Options: 2.5W, 5W, 7W, 10W, 15W, 20W

Emergency battery kit for high-voltage LED modules (50–230VDC), available in 2.5W–20W outputs with 3-hour backup. TÜV certified, LiFePO4 battery, suitable for both dimmable and non-dimmable LED drivers.

Product information "ENOV Emergency Battery Kit for LED Modules – EV-EM-250 Series"

The ENOV EV-EM-250 Series Emergency Battery Kit provides robust backup power for high-voltage LED lighting modules. Designed for LED modules with a forward voltage of 50–230VDC, this series delivers constant emergency power ranging from 2.5W to 20W and ensures 3 hours of backup operation during power failures. The kit is compatible with both dimmable and non-dimmable LED drivers, features high-quality LiFePO4 batteries with over two years of useful life, and comes TÜV Rheinland certified for maximum safety. Its flexible design supports in-fixture or remote installation, making it ideal for commercial, industrial, or public spaces requiring dependable high-voltage LED emergency lighting.

Technical Data

Input
Parameter	Specification
Voltage Range	220–240V AC
Frequency	50–60 Hz
Power Factor	>0.55
Input Power	4.5W
AC Current	30mA (240V AC)
Inrush Current	1.5A (max, 240V AC)

Output
Parameter	Specification
DC Voltage	50–230V DC
Power Options	2.5W, 5W, 7W, 10W, 15W, 20W
Emergency Duration	3 hours

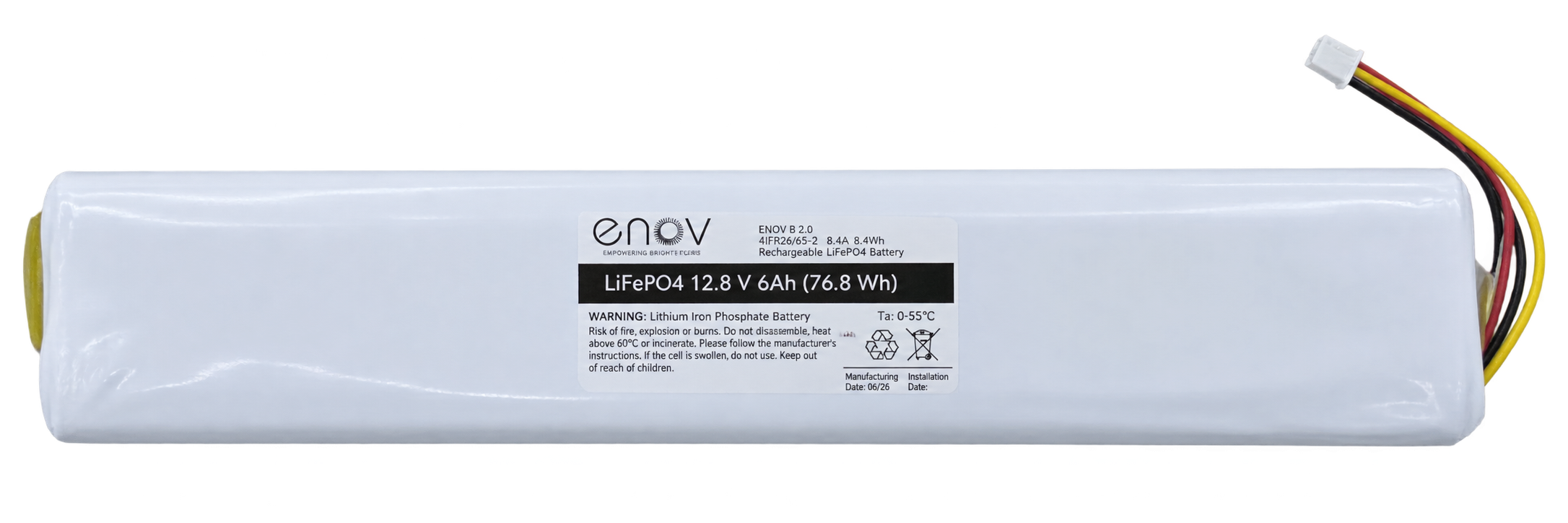

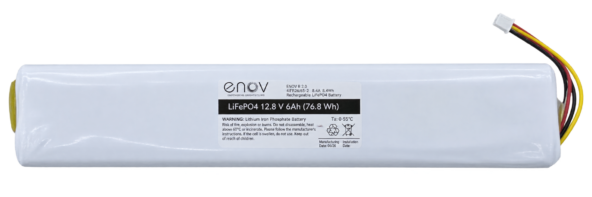

Battery
Power	Type	Battery Specification
2.5W	LiFePO4	6.4V 1500mAh
5W	LiFePO4	6.4V 3000mAh
7W	LiFePO4	6.4V 4000mAh
10W	LiFePO4	6.4V 6000mAh
15W	LiFePO4	12.8V 4500mAh
20W	LiFePO4	12.8V 6000mAh


Charge Current: 300–400mA (model dependent)
Charge Time: 16 hours

Protection & Environment
Parameter	Specification
IP Rating	IP20
Max Casing Temperature	75°C
Ambient Temperature	0–55°C (Operation: -25°C to 50°C)
Humidity	10–95% RH, non-condensing
Surge Protection	Yes
Storage Temperature	-40°C to 80°C

Compatibility
For LED modules with forward voltage 50–230V DC
Compatible with dimmable and non-dimmable LED drivers

Dimensions (mm)
Component	Length (L)	Width (W)	Height (H)
Inverter	158–165	30–31.5	20
Battery	105–300	36–40	19–38

(Model dependent)

Certifications
TÜV Rheinland Certified
EN 61347-2-7
EN 61347-2-13
EN 61347-1
EN 61547
EN 61000-3-2

Others
Parameter	Specification
MTBF	50,000 hours (at 25°C ambient)
