Belimo SM230ASR-TP Modulating Damper Actuator (20Nm, 230V-Class, 2–10V, Terminal Type)

Immediately available

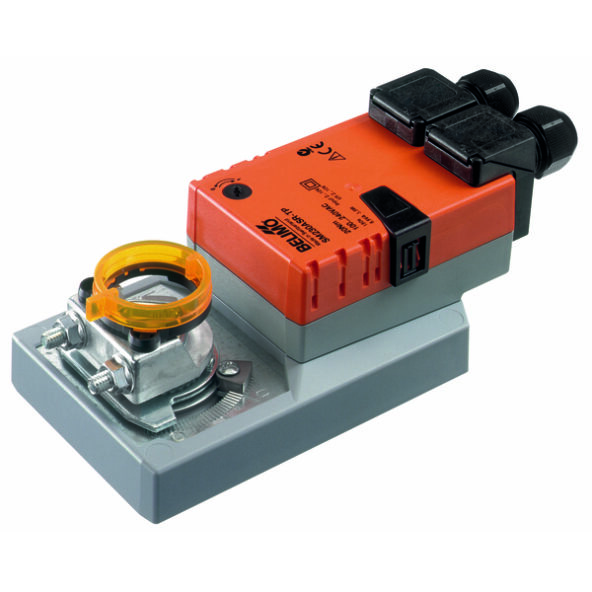

SM230ASR-TP (Belimo 20Nm, 230V-Class, Modulating Damper Actuator – Terminal Type)

Belimo SM230ASR-TP Modulating Damper Actuator (20Nm, 230V-Class, 2–10V, Terminal Type)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 20 Nm

Control Signal: 2–10 VDC (modulating)

Belimo SM230ASR-TP modulating damper actuator for HVAC air dampers up to approx. 4 m²; AC 100–240 V (85–265 V), 2–10 V control, 2–10 V feedback, 20 Nm, IP54 / NEMA 2, 150 s/90°, with connecting terminals and lockable manual override

Product information "Belimo SM230ASR-TP Modulating Damper Actuator (20Nm, 230V-Class, 2–10V, Terminal Type)"

The Belimo SM230ASR-TP is a robust modulating rotary actuator for precise positioning of HVAC air dampers in AHUs and duct systems. It operates with a 2–10 VDC control signal (Y) and provides a 2–10 VDC position feedback (U) for BMS monitoring and trending of damper position (0–100%).

The TP version is built for panel/field wiring using connecting terminals (separate terminals for supply and control). It includes a lockable push-button manual override, adjustable mechanical end stops, and overload protection with automatic stop at end position (no limit switches required).

Applications

  • AHU fresh/return/exhaust air dampers (modulating control)
  • Mixing box / economizer dampers (proportional positioning)
  • BMS/DDC control sequences using 2–10 V with feedback for verification and alarms
  • Projects needing terminal wiring and wide-range AC supply



Technical data

Specification Value
Model SM230ASR-TP
Damper size Up to approx. 4 m²
Supply AC 100–240 V, 50/60 Hz
Voltage range AC 85–265 V
Control signal (Y) 2–10 VDC
Input impedance 100 kΩ
Feedback (U) 2–10 VDC (max 1 mA)
Auxiliary supply DC 24 V ±30% (max 10 mA)
Torque 20 Nm
Position accuracy ±5%
Direction of motion Selectable (switch 0/1)
Running time 150 s / 90°
Rotation angle Max 95° (adjustable end stops)
Manual override Push-button, lockable
Power (operation / rest) 3.5 W / 1 W
Wire sizing 6.5 VA
Supply terminals Up to 4 mm² (2-wire), cable Ø4–10 mm
Control terminals Up to 4 mm² (4-wire), cable Ø4–10 mm
Parallel operation Yes
Protection IP54; NEMA 2; UL Type 2
Ambient -30…50°C; max 95% RH non-condensing
Storage -40…80°C
Weight 0.94 kg
Hygiene VDI 6022 Part 1 / SWKI VA 104-01
Approvals CE (EMC & LVD); cULus (UL60730)

Documents

Datasheet
Belimo SM230ASR-TP modulating damper actuator 20Nm 2-10V
Installation instructions
Belimo SM230ASR-TP modulating damper actuator 20Nm 2-10V
