Belimo NM230A-SR-TP Modulating Damper Actuator (10Nm, 230V-Class, 2–10V, Terminal Type)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 10 Nm

Control Signal: 2–10 VDC (modulating)

Belimo NM230A-SR-TP modulating damper actuator for HVAC air dampers up to approx. 2 m²; AC 100–240 V (85–265 V), 2–10 V modulating control, 2–10 V position feedback, 10 Nm, IP54 / NEMA 2, 150 s/90°, with connecting terminals

Product information "Belimo NM230A-SR-TP Modulating Damper Actuator (10Nm, 230V-Class, 2–10V, Terminal Type)"

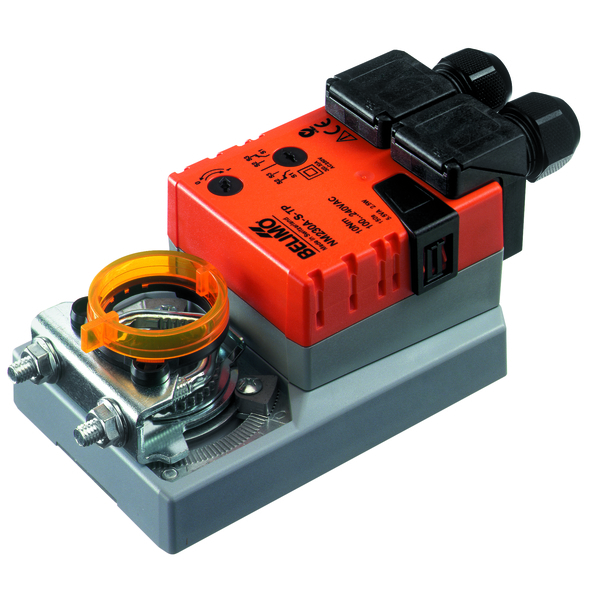

The Belimo NM230A-SR-TP is a compact modulating rotary actuator for precise positioning of HVAC air dampers in AHUs and duct systems. It is driven by a 2–10 VDC control signal (Y) and provides 2–10 VDC position feedback (U) for BMS monitoring, trending, and damper-proof verification.

The TP version uses connecting terminals (clean panel wiring / site installation). It features selectable rotation direction, lockable manual override, adjustable mechanical end stops, and overload protection with automatic stop at end position.

Applications

  • AHU fresh / return / exhaust air dampers (modulating control)
  • Mixing box / economizer dampers (proportional positioning)
  • BMS/DDC sequences using 2–10 V with continuous feedback
  • Retrofit projects requiring terminal wiring and wide-range AC supply

Technical data

Specification Value
Model NM230A-SR-TP
Damper size Up to approx. 2 m²
Supply AC 100–240 V, 50/60 Hz
Voltage range AC 85–265 V
Control signal (Y) 2–10 VDC
Input impedance 100 kΩ
Feedback (U) 2–10 VDC (max 1 mA)
Auxiliary supply DC 24 V ±30% (max 10 mA)
Torque 10 Nm
Position accuracy ±5%
Running time 150 s / 90°
Rotation angle Max 95° (adjustable end stops)
Direction Selectable by switch 0/1
Manual override Push-button, lockable
Power (operation / rest) 3.5 W / 1 W
Wire sizing 6.5 VA
Supply terminals Up to 4 mm² (2-wire), cable Ø4–10 mm
Control terminals Up to 4 mm² (4-wire), cable Ø4–10 mm
Parallel operation Yes
Protection IP54; NEMA 2; UL Type 2
Insulation Class II (reinforced)
Ambient -30…50°C; max 95% RH non-condensing
Storage -40…80°C
Weight 0.74 kg
