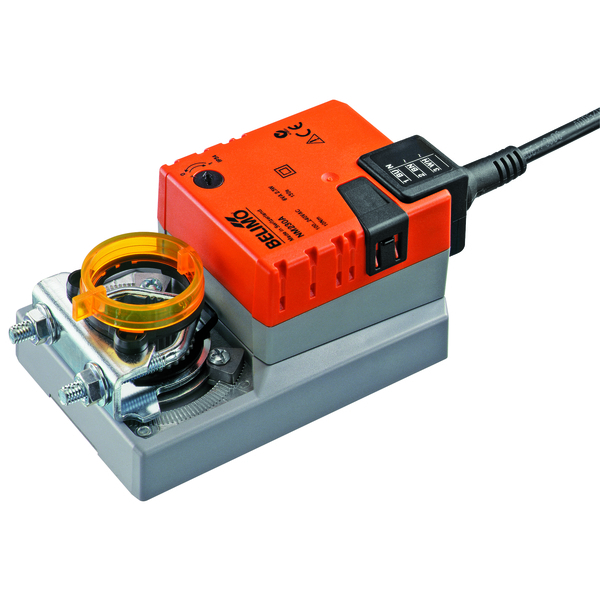

Belimo NM230A Damper Actuator (10Nm, 230V-Class, On/Off & 3-Point)

Immediately available

Belimo NM230A Damper Actuator (10Nm, 230V-Class, On/Off & 3-Point)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 10 Nm

Control Signal: 2 Position3 Position

Belimo NM230A damper actuator for HVAC air dampers up to approx. 2 m²; AC 100–240 V (85–265 V), open/close + 3-point, 10 Nm, IP54 / NEMA 2, 150 s/90°, with lockable manual override

Product information "Belimo NM230A Damper Actuator (10Nm, 230V-Class, On/Off & 3-Point)"

The Belimo NM230A is a reliable rotary actuator for adjusting HVAC air dampers in technical building installations. It supports open/close and 3-point (floating) control, making it suitable for standard BMS and control panel wiring. It includes a lockable push-button manual override, adjustable mechanical end stops, and overload protection that automatically stops the actuator at the end stop.

Applications

AHU fresh/return/exhaust air dampers
Zone dampers in ducted HVAC systems
Fan interlocks and damper proof (using add-on auxiliary switches if required)
3-point floating control sequences in BMS panels

Technical data

Specification	Value
Model	NM230A
Damper size	Up to approx. 2 m²
Supply	AC 100–240 V, 50/60 Hz
Voltage range	AC 85–265 V
Control	Open/Close, 3-Point
Torque	10 Nm
Running time	150 s / 90°
Rotation angle	Max 95° (adjustable mechanical end stops)
Manual override	Push-button, lockable
Power consumption	2.5 W (op); 0.6 W (rest)
Wire sizing	5.5 VA
Connection	Cable 1 m, 3 x 0.75 mm²
Direction	Selectable by switch 0/1 (ccw/cw)
Protection	IP54; NEMA 2; UL Enclosure Type 2
Protection class	Class II (reinforced insulation)
Sound level	35 dB(A)
Shaft clamp	Universal 8…26.7 mm
Ambient	-30…50°C; max 95% RH non-condensing
Storage	-40…80°C
Weight	0.72 kg
Maintenance	Maintenance-free
