Belimo LM230ASR-TP Modulating Damper Actuator (5Nm, 2–10V, 230V-Class)

Immediately available

Belimo LM230ASR-TP Modulating Damper Actuator (5Nm, 2–10V, 230V-Class)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 5 Nm

Control Signal: 2–10 VDC (modulating)

Belimo LM230ASR-TP modulating damper actuator for air dampers up to approx. 1 m²; AC 100–240 V (85–265 V), 2–10 V modulating control, 2–10 V position feedback, 5 Nm, IP54 / NEMA 2, 150 s/90°, with connecting terminals (TP) and lockable manual override

Product information "Belimo LM230ASR-TP Modulating Damper Actuator (5Nm, 2–10V, 230V-Class)"

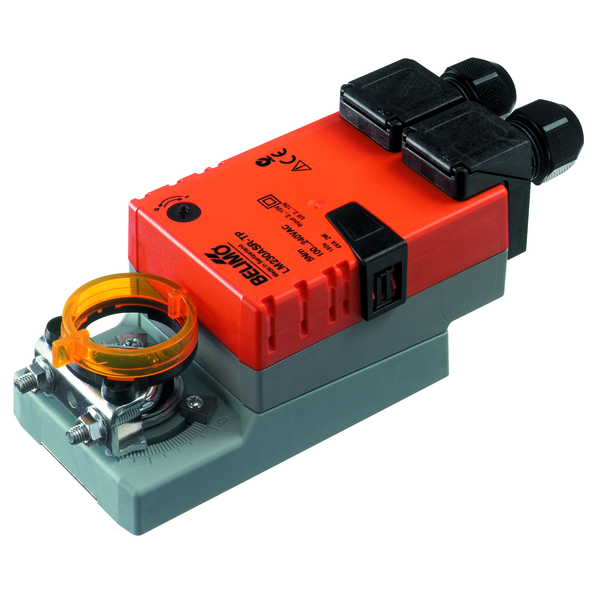

The Belimo LM230ASR-TP is a compact modulating rotary actuator used to precisely position HVAC air dampers in AHUs and duct systems. It accepts a 2–10 V control signal and drives the damper proportionally. A 2–10 V feedback output provides continuous position monitoring for BMS trending, alarms, and control verification.

The TP version is supplied with connecting terminals (instead of pre-wired cables), making it ideal for control panels and structured site wiring. The actuator includes lockable manual override, selectable rotation direction, adjustable mechanical end stops, and overload protection for reliable operation.

Applications

AHU fresh/return/exhaust dampers (modulating control)
Economizer and mixing box dampers (proportional positioning)
VAV / pressure control sequences requiring stable damper modulation
BMS systems using 2–10 V control + 2–10 V feedback for monitoring and alarms
Retrofit projects needing wide-range AC supply (100–240 V)

Technical data

Specification	Value
Model	LM230ASR-TP
Damper size	Up to approx. 1 m²
Supply	AC 100–240 V, 50/60 Hz
Voltage range	AC 85–265 V
Control signal (Y)	2–10 VDC
Input impedance	100 kΩ
Position feedback (U)	2–10 VDC (max. 1 mA)
Auxiliary supply	DC 24 V ±30%, max. 10 mA
Torque	5 Nm
Position accuracy	±5%
Direction of rotation	Selectable by switch (0/1)
Rotation angle	Max. 95° (adjustable end stops)
Running time	150 s / 90°
Manual override	Push-button, lockable
Power consumption	2 W (operation), 1 W (rest)
Wire sizing	4 VA
Supply connection	Terminals up to 4 mm² (2-wire, cable Ø4–10 mm)
Control connection	Terminals up to 4 mm² (4-wire, cable Ø4–10 mm)
Protection	IP54; NEMA 2 / UL Type 2
Insulation class	Class II (reinforced)
Sound level	35 dB(A)
Shaft clamp	Universal 6–20 mm
Ambient	-30…50°C; max 95% RH non-condensing
Storage	-40…80°C
Maintenance	Maintenance-free
Weight	0.41 kg
