Belimo LF230-S Spring Return Damper Actuator (4Nm, AC 100–240V, Open/Close, Aux Switch)

Immediately available

Belimo LF230-S Spring Return Damper Actuator (4Nm, AC 100–240V, Open/Close, Aux Switch)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 4 Nm

Control Signal: 2 Position

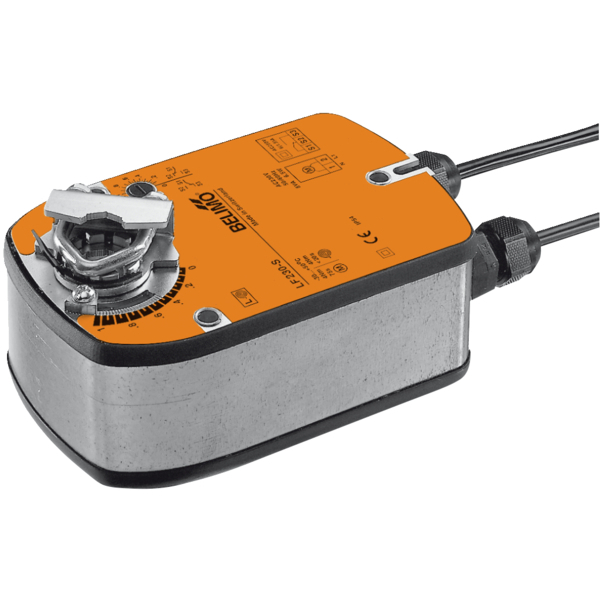

Belimo LF230-S fail-safe spring-return damper actuator for air dampers up to approx. 0.8 m²; AC 100–240 V (suitable for 230 V), open/close, 4 Nm, IP54, 75 s/90°, adjustable auxiliary switch 1x SPDT.

Product information "Belimo LF230-S Spring Return Damper Actuator (4Nm, AC 100–240V, Open/Close, Aux Switch)"

The Belimo LF230-S is a compact fail-safe (spring return) rotary actuator for controlling HVAC air dampers. During normal operation, it drives the damper to the operating position while tensioning the internal spring. On power interruption, the spring returns the damper to the safety position automatically.

It is designed for easy, direct mounting using a universal shaft clamp (8–16 mm) and offers a mechanically adjustable rotation limit to set the effective damper travel. The integrated auxiliary switch (SPDT) provides flexible end-position signalling for BMS interlocks and status feedback.

Applications

AHU and duct air dampers (open/close control)
Fail-safe outside air / exhaust / smoke purge dampers (where spring return is required)
Damper end-position feedback/interlock to BMS using the integrated auxiliary switch
General HVAC damper automation where IP54 protection is preferred

Technical Specifications

Specification	Value
Model	LF230-S
Application	Fail-safe rotary damper actuator
Damper size	Up to approx. 0.8 m²
Supply voltage	AC 100–240 V, 50/60 Hz (range AC 85–265 V)
Control	Open/Close (On/Off)
Torque (motor)	4 Nm
Torque (fail-safe)	4 Nm
Running time (motor)	75 s / 90°
Fail-safe time	<20 s @ -20…50°C; <60 s @ -30°C
Angle of rotation	Max. 95° (adjustable 37…100% via mechanical limitation)
Auxiliary switch	1x SPDT, adjustable 0…100%
Aux switch rating	1 mA…3 A (0.5 A inductive), DC 5 V…AC 250 V
Power consumption	3.5 W (operation), 2 W (rest), 6.5 VA (wire sizing)
Inrush current	150 mA @ 10 ms
Protection	IP54
Sound level	50 dB(A)
Shaft clamp	Universal clamp 8–16 mm
Parallel operation	Yes
Ambient temperature	-30…50°C
Ambient humidity	Max 95% RH, non-condensing
Storage temperature	-40…80°C
Service life	Min. 60,000 fail-safe positions
Weight	1.7 kg
