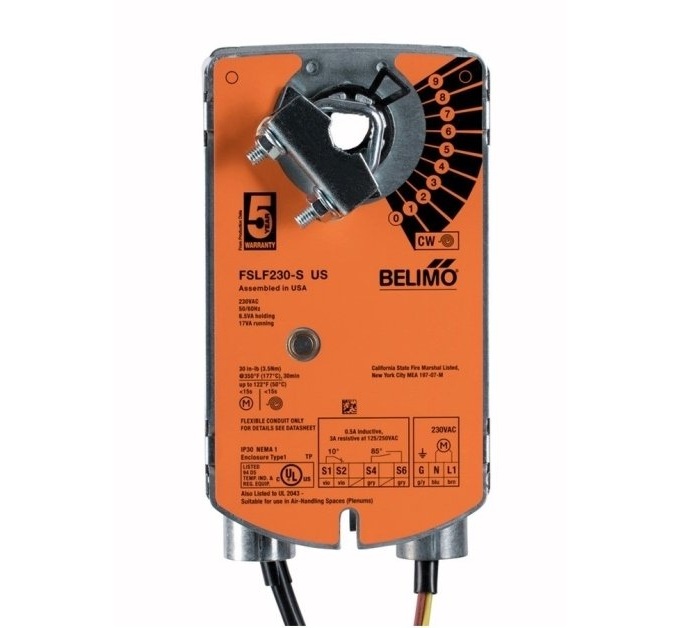

Belimo FSLF230-S Fire & Smoke Damper Actuator (230V, 3.5Nm, On/Off)

Immediately available

Belimo FSLF230-S Fire & Smoke Damper Actuator (230V, 3.5Nm, On/Off)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 230 VAC

Force / Torque: 3.5 Nm

Control Signal: 2 Position

Belimo FSLF230-S fail-safe spring-return actuator for typical fire & smoke damper applications; AC 230 V, on/off, 3.5 Nm, 15 s/90° motor, <15 s spring return, 2x SPST auxiliary switches, NEMA 1 / UL Type 1, UL 2043 compliant (air plenums).

Product information "Belimo FSLF230-S Fire & Smoke Damper Actuator (230V, 3.5Nm, On/Off)"

The Belimo FSLF230-S is a compact spring-return actuator for fire and smoke damper applications where a low-torque, reliable fail-safe actuator is required. It provides on/off (open/close) control on AC 230 V supply and returns the damper to the safety position automatically on power loss using an internal spring mechanism. The “-S” version includes an auxiliary switch for end-position feedback and interlock logic.

Applications

Fire & smoke damper actuation for small/light dampers
Fail-safe damper control (spring return to safety position on power loss)
End-position feedback/interlock to fire interface or BMS using auxiliary switch
HVAC ventilation safety damper control in risers, small AHUs, and smoke control branches

Technical Specifications

Specification	Value
Model	FSLF230-S
Supply	AC 230 V, 50/60 Hz (207–253 V)
Control	On/Off (Open/Close)
Torque	3.5 Nm (30 in-lb) @ 177°C for 30 min
Rotation angle	95°
Running time	15 s / 90° (motor); <15 s (fail-safe)
Power consumption	17 VA (operation); 4 W / 8 VA (rest); end stop 27 VA
Inrush current	3.7 A
Auxiliary switches	2x SPST, 1x 10° / 1x 85°
Enclosure	NEMA 1 (UL Enclosure Type 1)
Ambient	0…50°C; max 95% RH (non-condensing)
Storage	-40…80°C
Weight	1.9 kg (4.1 lb)
Compliance	cULus listed; UL 2043 compliant (air plenums)
