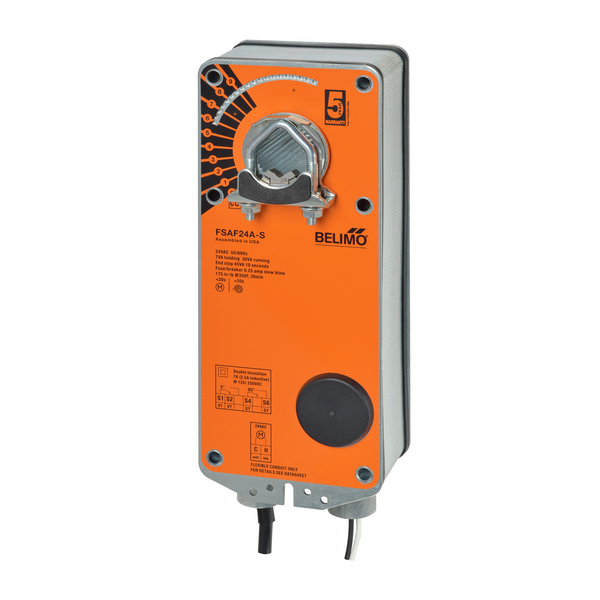

Belimo FSAF24A-S Fire & Smoke Damper Actuator 24V 20Nm (On/Off)

Immediately available

Belimo FSAF24A-S Fire & Smoke Damper Actuator 24V 20Nm (On/Off)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 24 VAC/DC

Force / Torque: 20 Nm

Control Signal: 2 Position

Belimo FSAF24A-S fail-safe spring-return actuator for fire & smoke dampers, AC/DC 24 V, on/off control, 20 Nm (180 in-lb) @ 177°C for 30 min, 25 s/90° motor, <15 s spring return, 2x SPST auxiliary switches, cULus listed, UL 2043 compliant for air plenums.

Product information "Belimo FSAF24A-S Fire & Smoke Damper Actuator 24V 20Nm (On/Off)"

The Belimo FSAF24A-S is a spring-return (fail-safe) fire & smoke damper actuator designed for operation of UL555 and UL555S listed fire/smoke dampers in ventilation and air-conditioning systems.

When power is applied, the actuator drives the damper to the open position while tensioning the internal spring. If power is interrupted, the spring drives the damper back to its fail-safe position (typically closed). The “-S” version includes two built-in auxiliary switches (2x SPST) for end-position indication and interlock control.

Applications

Operation of UL555 / UL555S fire and combination fire & smoke dampers
Fail-safe damper control (spring return on power loss)
End-position feedback / interlocks using integrated auxiliary switches

Technical Specifications

Specification	Value
Model	FSAF24A-S
Supply	AC/DC 24 V, 50/60 Hz
Control	On/Off (Open/Close)
Torque	20 Nm (180 in-lb) @ 177°C for 30 min
Rotation angle	95°
Running time	25 s / 90° (motor); <15 s (fail-safe)
Power consumption	32 VA (operation); 5 W / 8.5 VA (rest); end stop 47 VA
Inrush current	30 A
Aux switches	2x SPST, 1x 10° / 1x 85°
Protection	NEMA 1 / UL Enclosure Type 1
Ambient	0…50°C; max 95% RH non-condensing
Storage	-40…80°C
Weight	2.7 kg (5.9 lb)
Compliance	cULus (UL60730-1A/-2-14); UL 2043 compliant (air plenums)
