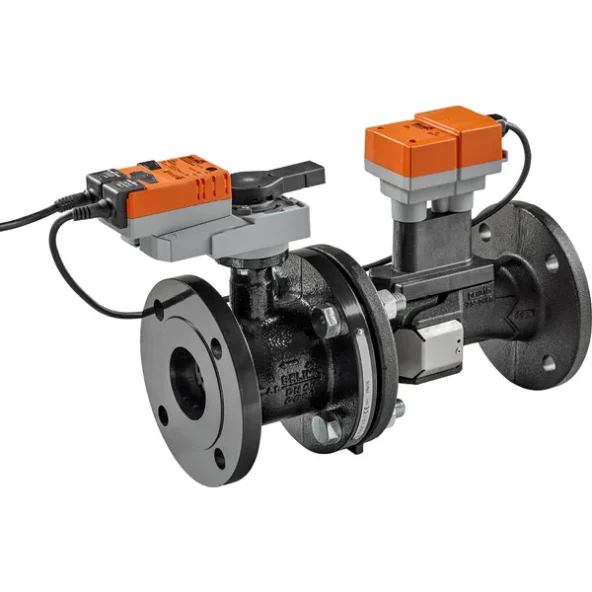

Belimo Energy Valve™ EV100F+BAC – DN100 PN16 Flanged, BACnet/Modbus, 24V

Name: Belimo Energy Valve™ EV100F+BAC – DN100 PN16 Flanged, BACnet/Modbus, 24V
SKU: 15978
Availability: InStock

Immediately available

Belimo Energy Valve™ EV100F+BAC – DN100 PN16 Flanged, BACnet/Modbus, 24V

Immediately available

Brand: Belimo

Valve type: PICV

Port: 2-port

PN class: PN16

Connection: Flange

Nominal Size: DN100

Electrically actuated 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V with BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and 2–10 V control. DN 100 flanged PN16, ps 1600 kPa, V’nom 20 l/s, fluid temperature -10…120°C, with glycol monitoring.

Product information "Belimo Energy Valve™ EV100F+BAC – DN100 PN16 Flanged, BACnet/Modbus, 24V"

EV100F+BAC is a Belimo Energy Valve™ (electronic 2-way PI-CCV) designed for accurate hydronic control with digital communication for BMS integration and system monitoring.

Key features

2-way pressure independent characterised control valve (PI-CCV)
Power supply: AC/DC 24 V
Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud
Control signal: 2–10 V
Size: DN 100, flanged connection
Pressure rating: PN 16
Max static pressure (ps): 1600 kPa
Nominal flow (V’nom): 20 l/s
Fluid temperature: -10…120°C
Glycol monitoring

Typical applications of Belimo EV100F+BAC

Chilled water and hot water HVAC systems
AHU / main circuit branches and primary loops
BMS-controlled flow & energy monitoring projects

Technical Specifications

Technical Specifications – EV100F+BAC

Model / Type	Belimo Energy Valve™ (2-way characterised control valve with sensors), Flanged, PN16
Nominal size	DN 100
Nominal flow (V’nom)	20 l/s (1200 l/min / 72 m³/h)
Theoretical Kvs	127 m³/h
V’max adjustable	30…100% of V’nom
Min. controllable flow	1% of V’nom
Close-off pressure (Δps)	690 kPa
Max differential pressure (Δpmax)	340 kPa
Flow characteristic	Equal percentage (switchable to linear)
Leakage rate	Air-bubble tight, Leakage rate A (EN 12266-1)
Connection standard	Flange according to EN 1092-2
Fluid	Water / water with glycol up to max. 50% vol.
Fluid temperature	-10…120°C
Power supply	AC/DC 24 V, 50/60 Hz
Voltage range	AC 19.2…28.8 V / DC 21.6…28.8 V
Power consumption	7 W (operation), 5 W (rest)
Wire sizing	11 VA (DN100)
Supply / control connection	Cable 1 m, 6 × 0.75 mm²
Ethernet	RJ45 socket, 10/100 Mbit/s, TCP/IP, integrated web server
Control signal (Y)	2…10 V (variable 0.5…10 V), input impedance 100 kΩ
Feedback (U)	2…10 V (max 1 mA), variable 0…10 V / 0.5…10 V
Communication protocols	BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud
MP-Bus nodes	Max. 8
Flow measurement	Ultrasonic; accuracy ±2% (25…100% V’nom @ 20°C, glycol 0%)
Min. flow measurement	0.5% of V’nom
Temperature measurement	Abs. accuracy ±0.35°C @ 10°C, ±0.6°C @
