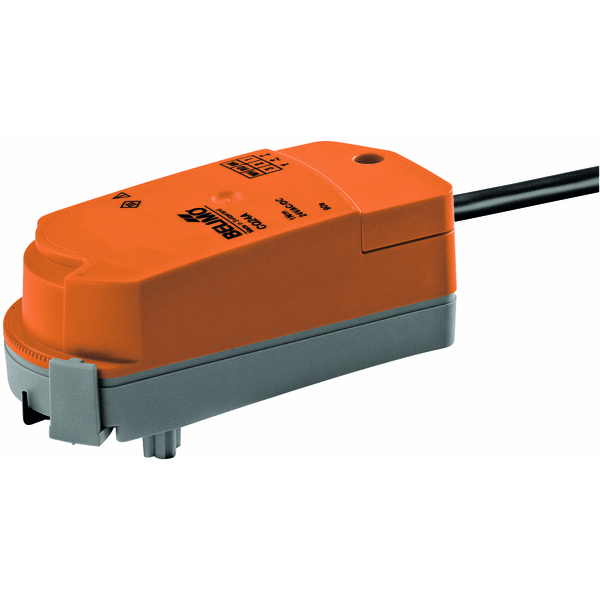

Belimo CQ230A Rotary Actuator for Zone Valves 1Nm (100–240V)

Immediately available

Belimo CQ230A Rotary Actuator for Zone Valves 1Nm (100–240V)

Immediately available

Brand: Belimo

Product type: Rotary actuator

Operating Voltage: 100 - 240 VAC

Force / Torque: 1 Nm

Control Signal: 2 Position3 Position

Belimo CQ230A rotary actuator for zone valves, 1 Nm, AC 100–240 V (85–265 V), open/close and 3-point control, 75 s/90°, snap-on mounting, manual override, variable flow setting via adjustable rotation angle.

Product information "Belimo CQ230A Rotary Actuator for Zone Valves 1Nm (100–240V)"

The Belimo CQ230A is a compact rotary actuator intended for zone valves in HVAC systems. It provides on/off (2-point) control with AC 230 V supply and 1 Nm torque, making it suitable for small valve actuation duties in fan coil units, small AHU branches, and general zoning circuits.

This actuator is typically used where reliable open/close positioning is required for temperature control, isolation, or zoning control under a thermostat, controller, or BMS output.

Applications

Zone control of fan coil units (FCU) and small HVAC branches
On/off isolation of chilled water / hot water circuits (as per valve design)
Small air-handling / ventilation zoning circuits
Building automation 2-point valve control from controller/thermostat

Technical Specifications

Specification	Value
Model	CQ230A
Torque	1 Nm
Supply voltage	AC 100–240 V, 50/60 Hz (range AC 85–265 V)
Control	Open/close, 3-point
Running time	75 s / 90°
Power consumption	1 W (operation), 0.7 W (rest), 2 VA (wire sizing)
Connection	Cable 1 m, 3×0.75 mm²
Degree of protection	IP40
Manual override	Yes (actuator clicked out)
Position indication	Yes
Sound level	35 dB(A)
Ambient temperature	5…40°C
Ambient humidity	Max. 95% RH, non-condensing
Weight	0.21 kg
