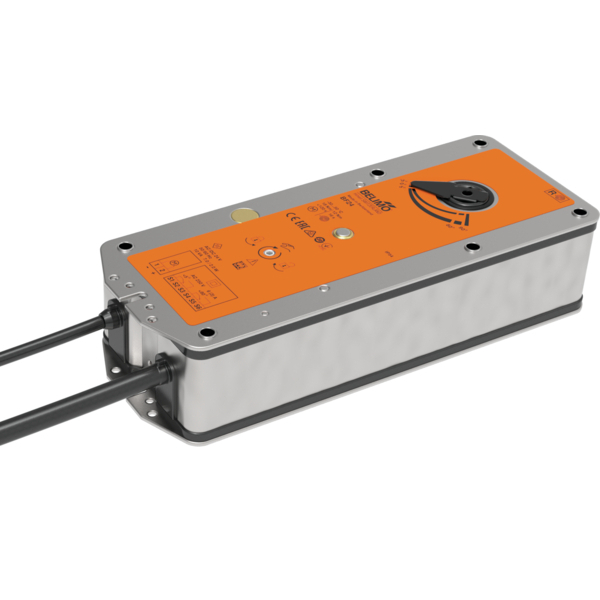

Belimo BF24-S-ME Spring Return Fire & Smoke Damper Actuator (15 Nm, 24 V)

Immediately available

Belimo BF24-S-ME Fire & Smoke Damper Actuator 15Nm 24V

Belimo BF24-S-ME Spring Return Fire & Smoke Damper Actuator (15 Nm, 24 V)

Immediately available

Brand: Belimo

Product type: Damper Actuator

Operating Voltage: 24 VAC/DC

Force / Torque: 15 Nm

Control Signal: 2 Position

Belimo BF24-S-ME spring-return actuator for fire & smoke dampers, 15 Nm, AC/DC 24 V, open/close control, 2x SPDT auxiliary switches, IP54, fail-safe spring return

Product information "Belimo BF24-S-ME Spring Return Fire & Smoke Damper Actuator (15 Nm, 24 V)"

The Belimo BF24-S-ME is a spring-return actuator designed to operate fire and smoke dampers (90°) in HVAC ventilation and air-conditioning systems. It provides open/close control with a reliable fail-safe spring return, ensuring the damper returns to the defined safety position when power is interrupted.

During normal operation, the actuator drives the damper to the operating position while tensioning the spring. When the supply voltage is cut, the stored spring energy drives the damper back to the safety position. A manual override is available for positioning without power, and two integrated auxiliary switches (2x SPDT) support end-position indication for BMS/fire interface monitoring.

Applications

  • Fire & smoke damper actuation in AHUs, smoke control systems, stairwell pressurization and ventilation systems
  • Fail-safe damper control where the damper must drive to safety position on power loss (spring return)
  • End-position feedback (open/closed) to BMS / fire alarm interface using integrated auxiliary switches

Technical Specifications

Electrical

  • Nominal voltage: AC/DC 24 V
  • Nominal voltage range: AC 19.2…28.8 V / DC 21.6…28.8 V
  • Frequency: 50/60 Hz
  • Power consumption (operation): 8 W
  • Power consumption (rest): 2 W
  • Power for wire sizing: 11 VA
  • Inrush current (Imax): 8.3 A @ 5 ms
  • Auxiliary switches: 2x SPDT
  • Aux switch rating: 1 mA…6 A (3 A inductive), DC 5 V…AC 250 V
  • Switching points: 5° / 80°
  • Connection (supply/control): Cable 1 m, 2x 0.75 mm² (halogen-free)
  • Connection (aux switches): Cable 1 m, 6x 0.75 mm² (halogen-free)

Functional / mechanical

  • Torque (motor): 15 Nm
  • Torque (fail-safe): 15 Nm
  • Direction of motion: selectable by mounting L/R
  • Angle of rotation: max 95° (incl. 5° initial spring tension)
  • Running time (motor): 75 s / 90°
  • Running time (fail-safe): < 20 s @ 20°C
  • Mechanical interface: form fit 12 mm (10 mm with enclosed adapter)
  • Position indication: mechanical pointer
  • Service life: min. 60,000 safety positions
  • Weight: 2.7 kg

Protection / compliance / environment

  • Degree of protection: IP54
  • NEMA: NEMA 2 (UL Enclosure Type 2)
  • Protection class: IEC/EN III (SELV)
  • Ambient humidity: max 95% RH, non-condensing
  • Ambient temp (normal operation): -30…50°C
  • Ambient temp (safety operation): safety position attained up to max 75°C
  • Storage temp: -40…80°C
  • Designed for: UL555 and UL555S

Documents

Datasheet
Belimo BF24-S-ME Spring Return Fire & Smoke Damper Actuator
