Belimo 01DT-1LP NTC10k Duct/Immersion Temperature Sensor (200 mm)

Immediately available

Belimo 01DT-1LP NTC10k Duct/Immersion Temperature Sensor (200 mm)

Immediately available

Brand: Belimo

Sensor type: Temperature

Output signal: NTC10k (10k2)

Probe length: 200 mm

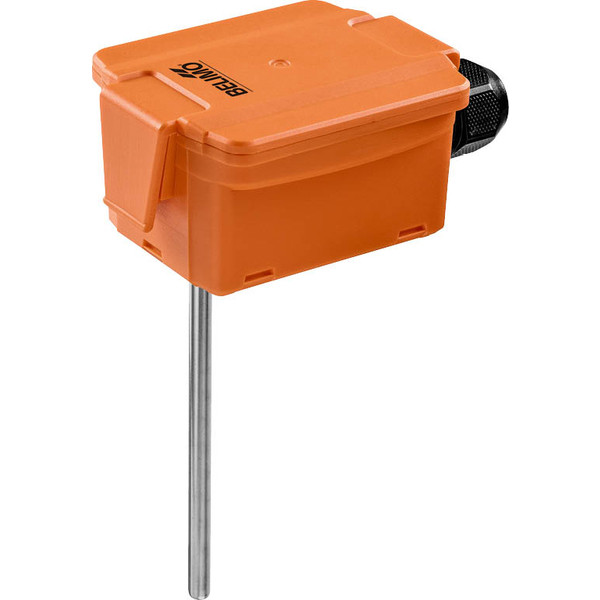

Belimo 01DT-1LP duct/immersion temperature sensor, passive NTC10k (10k2), 200 mm probe (Ø6 mm), IP65 / NEMA 4X housing; supplied with mounting clip, screws, and adhesive foil

Product information "Belimo 01DT-1LP NTC10k Duct/Immersion Temperature Sensor (200 mm)"

The Belimo 01DT-1LP is a passive temperature sensor for accurate temperature measurement in air ducts and, when used with a suitable thermowell, also for pipe (water) applications. It uses an NTC10k (10k2) sensing element and a 200 mm stainless-steel probe (Ø6 mm), making it well suited for AHU duct temperature monitoring and water temperature measurement in HVAC control systems.

The sensor is built in a rugged IP65 / NEMA 4X rated housing and is supplied with a mounting clip and fixing accessories for duct installation

Applications

AHU / duct supply air temperature sensing (post-coil or discharge air monitoring)
Return air / mixed air temperature sensing in HVAC ducts
Pipe immersion temperature sensing (with thermowell) for chilled/hot water loops, AHU coil circuits, and general HVAC hydronic measurement

Technical Specifications

Core specifications
Model / MPN: 01DT-1LP
Sensor type: Duct/Immersion temperature sensor (passive)
Output / element: NTC10k (10k2)
Probe length / diameter: 200 mm / 6 mm
Medium: Air / Water
Measuring performance
Measuring range: -50…150°C
Measuring current: < 2 mA @ 25°C
Accuracy: ±0.2°C @ 25°C
Time constant (water, with thermowell + thermal contact fluid):
- Typical 7 s (brass thermowell)
- Typical 9 s (stainless steel thermowell)
Time constant (air duct): Typical 210 s @ 0 m/s, 46 s @ 3 m/s
